Five-Axis Force at the Sole
5dMF Motus™ Miniature Wireless 5-Axis Plantar Force Sensor

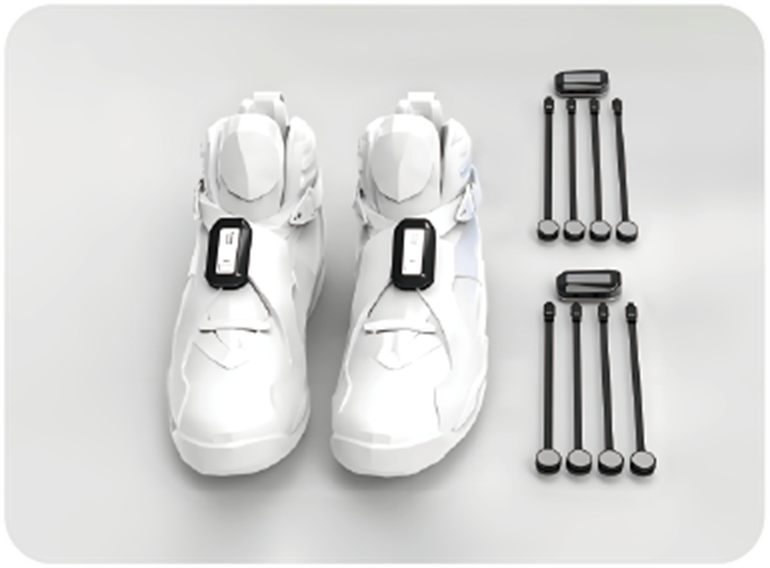

A miniature wireless plantar force sensor that measures three-dimensional forces and moments in a micro-region of the sole in real time, outputting Fx/Fy/Fz/Mx/My per channel. By analyzing plantar force distribution, it helps assess plantar muscle control and balance and identify patterns such as abnormal arch shape or uneven plantar loading, providing reliable data to support clinical and research workflows. The sensor measures ≤25 mm in diameter and ≤11 mm in height, transmits over wireless WiFi, and samples at 1000 Hz per channel with a 16-bit ADC, with history playback, data save/export and vector computation.
- Sampling frequency
- 1000 Hz (per channel)
- ADC resolution
- 16-bit
- Dimensions
- ≤25 mm dia. × ≤11 mm height
- Transmission
- Wireless WiFi
Force, Moment and Centre of Pressure
How the six kinetic channels and the centre-of-pressure track read together during a stance.
- Fz
- —
- Fx
- —
- Fy
- —
- COP
- —
Report charts
Charts of the kind this product’s reports and analysis screens contain, animated in step with the preview above; their values are illustrative too.
This preview animates software-generated illustrative values so the data the system produces can be understood. No physical device is connected and no reading here is a measurement.
Core Capabilities
The capability points below are taken from the official product material for this product.
Real-time measurement of force distribution and pressure changes in a plantar micro-region, with per-channel Fx/Fy/Fz/Mx/My output
History review and playback
measurement data save and export; vector computation
≤25 mm diameter and ≤11 mm height
wireless WiFi transmission
1000 Hz per-channel sampling with 16-bit ADC
Typical Workflow
A generic research-lab sequence; mounting, synchronization and export details follow the official technical file.
Set up and calibrate
Position the equipment for the protocol and complete zeroing or calibration before the first trial.
Acquire in sync
Record with third-party kinematic, kinetic or physiological systems on one time base where the protocol requires it.
Process and analyze
Review trials in the analysis software and derive the metrics your study defines.
Export and publish
Export raw or processed data for statistics, modelling and publication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | ≤25 mm dia. × ≤11 mm height |
| Sensor type | Strain-gauge |
| Combined accuracy | 2% |
| Sampling frequency | 1000 Hz (per channel) |
| ADC resolution | 16-bit |
| Transmission | Wireless WiFi |
Application Scenarios
Application areas listed in the official product material.
- SCENARIO 01
Force distribution and pressure-change measurement in a plantar micro-region
LAGRANGE5-AXIS PLANTAR FORCE SENSORSmart-500
Documentation
Datasheet preview and download; the official technical file governs final mechanical and electrical details.
- Datasheet · Smart-500Coming soon
