Six-Axis Ground Reaction Force

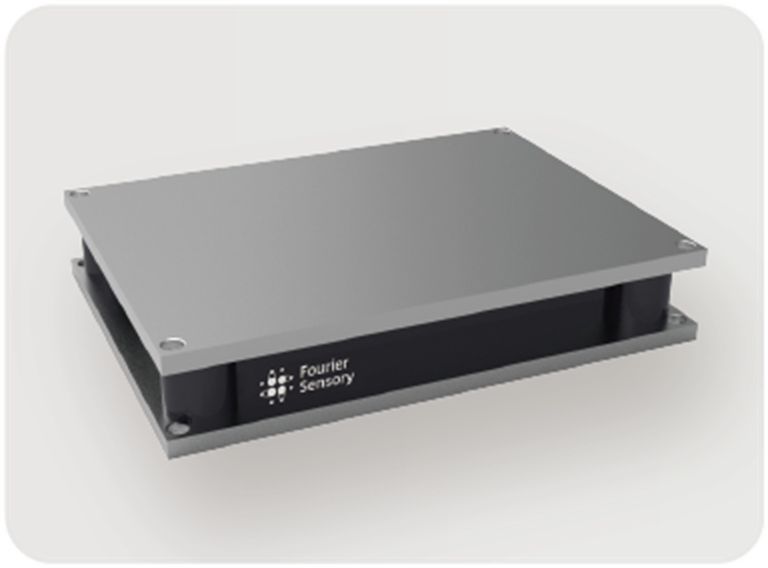

6dFP Motus™ 6-Axis Force Plate
A six-axis force plate that measures forces and moments along all three Cartesian axes (Fx/Fy/Fz/Mx/My/Mz). With ≤0.5% combined accuracy, sampling up to 4000 Hz, a 24-bit ADC and four switchable ranges, it captures clean kinetics for children and adults alike. Configure it as a walkway, step or ramp to derive force, moment, resultant/component angles, velocity, acceleration, friction coefficient, centre of pressure and its trajectory, and power — for rehabilitation, training and research. Plates tile together and synchronize with third-party kinematic, kinetic and physiological systems.
- Sampling frequency
- Up to 4000 Hz
- Combined accuracy
- ≤ 0.5%
- ADC resolution
- 24-bit
- Platform size
- 400 × 600 mm
Force, Moment and Centre of Pressure
How the six kinetic channels and the centre-of-pressure track read together during a stance.
- Fz
- —
- Fx
- —
- Fy
- —
- COP
- —
Report charts
Charts of the kind this product’s reports and analysis screens contain, animated in step with the preview above; their values are illustrative too.
This preview animates software-generated illustrative values so the data the system produces can be understood. No physical device is connected and no reading here is a measurement.
Core Capabilities
The capability points below are taken from the official product material for this product.
Modular walkway / step / ramp configurations for varied movement tasks
Four switchable measurement ranges, from children to adults
24-bit resolution at up to 4000 Hz for fast
high-fidelity kinetics
Multi-plate tiling and sync with third-party kinematic / kinetic / physiological devices
Typical Workflow
A generic research-lab sequence; mounting, synchronization and export details follow the official technical file.
Set up and calibrate
Position the equipment for the protocol and complete zeroing or calibration before the first trial.
Acquire in sync
Record with third-party kinematic, kinetic or physiological systems on one time base where the protocol requires it.
Process and analyze
Review trials in the analysis software and derive the metrics your study defines.
Export and publish
Export raw or processed data for statistics, modelling and publication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Output axes | Fx / Fy / Fz / Mx / My / Mz |
| Platform size | 400 × 600 mm |
| Sensor type | Strain-gauge |
| Combined accuracy | ≤ 0.5% |
| Sampling frequency | Up to 4000 Hz |
| ADC resolution | 24-bit |
| Measurement ranges | 4 switchable |
| Multi-unit tiling | Supported |
Application Scenarios
Application areas listed in the official product material.
- SCENARIO 01
Balance
LAGRANGE6-AXIS FORCE PLATEFFP-4060 - SCENARIO 02
Gait
LAGRANGE6-AXIS FORCE PLATEFFP-4060 - SCENARIO 03
Vertical jump
LAGRANGE6-AXIS FORCE PLATEFFP-4060 - SCENARIO 04
Striking
LAGRANGE6-AXIS FORCE PLATEFFP-4060 - SCENARIO 05
Weightlifting
LAGRANGE6-AXIS FORCE PLATEFFP-4060 - SCENARIO 06
Stairs
LAGRANGE6-AXIS FORCE PLATEFFP-4060 - SCENARIO 07
Ramp
LAGRANGE6-AXIS FORCE PLATEFFP-4060
Documentation
Datasheet preview and download; the official technical file governs final mechanical and electrical details.
- Datasheet · FFP-4060
