The Whole Lab on One Time Base

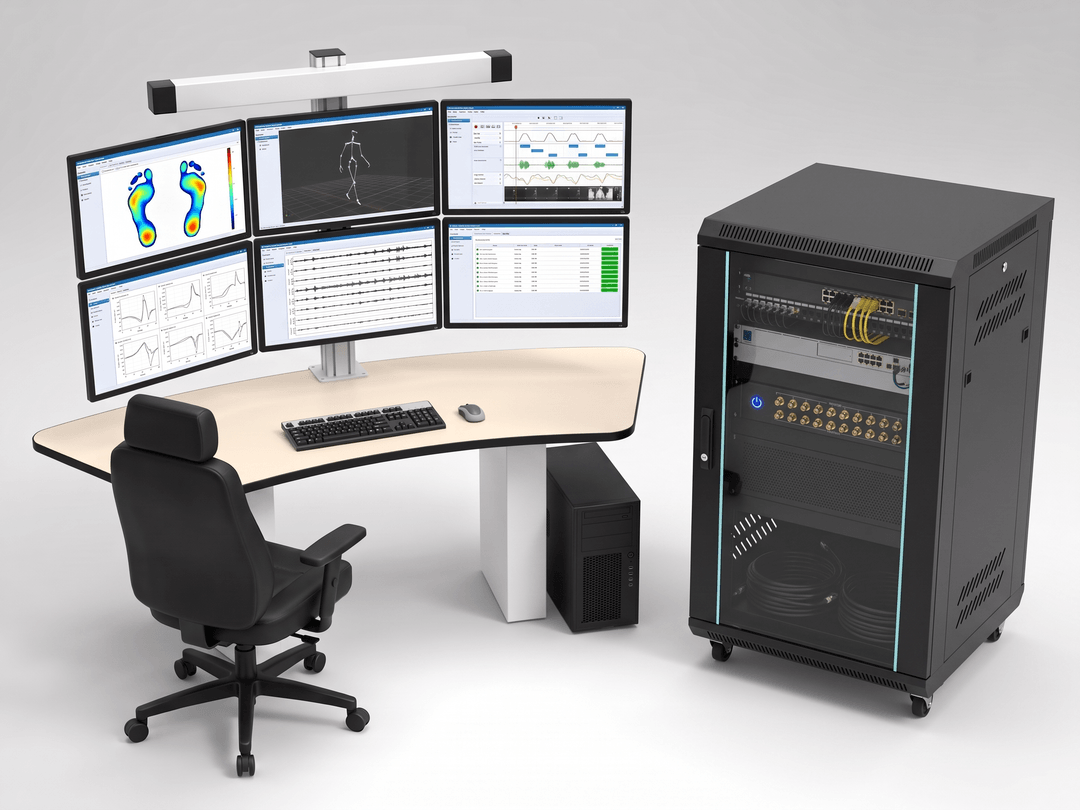

BioMotionX Platform™ Movement Biomechanics Workstation
A movement-biomechanics workstation built on integrated kinetic, kinematic and physiological devices, supporting dynamic assessment while sitting, standing, walking or running. It combines acquisition, analysis, assessment and training software with a big-data analytics and research computation engine, and — via a movement-biomechanics vertical model and AI-agent research assistants — delivers intelligent data services that drive research innovation accurately and efficiently. The workstation synchronizes and integrates data from every connected device, pairing a high-performance server host with large high-resolution, high-refresh, high-response displays so multiple demanding research or training applications run at once. Its research and assessment/training software suite is driven concurrently over a unified data path for multi-device orchestration and multimodal data synchronization.
- Sync trigger
- BNC · 1 in / 20 out
- Trigger rate
- 10 / 100 Hz
- Research AI platform
- 20+ agents
- Server host
- ≥ i9 · 64 GB · 8 TB + 2 TB · 4060Ti 16 GB
One Workstation, Four Pillars
Intelligent hardware, system software, the data platform and the AI research service run together around one unified data path — that is the full shape of the biomechanics workstation.
- INTELLIGENT HARDWARE
Intelligent Hardware
Synchronizer · server host · operator and display terminals · 3D tactile pressure walkway · wireless surface-EMG system
- SYSTEM SOFTWARE
System Software
Information management · device configuration · research acquisition — kinetic and physiological data displayed and analyzed in sync
- DATA PLATFORM
Data Platform
DDS system integration and synchronization · on-premise deployment · intelligent-hardware upgrades
- AI RESEARCH SERVICE
AI Research Service
20+ agents carry the research workflow end to end: efficient · with memory · iterative
Core Capabilities
The capability points below are taken from the official product material for this product.
Synchronizes and integrates data from every device in the workstation
with high-throughput ingestion and real-time analysis for multi-device orchestration and multimodal synchronization; produces clinical and research reports with accompanying research-translation services
Lagrange system
information-management, device-configuration, acquisition, analysis and reporting modules plus analysis software, drawing on kinetic / kinematic / physiological device data with synchronized display and analysis
On-premise research AI computing platform
draws on device acquisition/analysis data and industry big-data repositories, applies machine learning and feature-recognition algorithms for deep secondary analysis, and uses 20+ agents to help researchers with data cleaning, normalization, labeling and visualization, outputting research reports
Research-translation platform
clinical software, smart hardware products, IP transfer, paper publication and project-application support
Clinical rehabilitation
integrated rehab assessment with gamified rehab training, spanning hospital-to-home settings and the whole rehabilitation cycle, safe and effective
Data platform
DDS system integration and synchronization, with on-premise deployment and intelligent-hardware upgrades, accumulating progressive clinical rehabilitation pathways
Typical Workflow
A generic research-lab sequence; mounting, synchronization and export details follow the official technical file.
Set up and calibrate
Position the equipment for the protocol and complete zeroing or calibration before the first trial.
Acquire in sync
Record with third-party kinematic, kinetic or physiological systems on one time base where the protocol requires it.
Process and analyze
Review trials in the analysis software and derive the metrics your study defines.
Export and publish
Export raw or processed data for statistics, modelling and publication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Scenarios | Lab / integrated treadmill / portable wearable |
| Devices | Kinematics / kinetics / physiology |
| Software modules | Information management / device configuration / acquisition / analysis / reporting / debugging |
| Research AI platform | 20+ agents |
| Sync trigger | BNC · 1 in / 20 out |
| Trigger signal | TTL high level · single / continuous pulses |
| Trigger rate | 10 / 100 Hz |
| Sync API | Standard C interface |
| Server host | ≥ i9 · 64 GB · 8 TB + 2 TB · 4060Ti 16 GB |
| Operator display | ≥49″ 32:9 ultrawide 5K curved · ≥120 Hz |
| Display terminal | ≥42.51″ 4K all-in-one · ≥60 Hz |
Movement Intelligent-Analysis Lab Configuration
The standard configuration for the field-lab scenario; project-specific configurations follow the official technical proposal.
Workstation hardware
1 set- System composition
- Synchronizer, server host, display terminal, operator terminal, workbench, 3D tactile pressure walkway, wireless surface-EMG assessment and training system; triggers, records, transmits and displays the data of every device in the workstation in sync, for multi-device orchestration and multimodal data synchronization
- Synchronizer
- 12V adapter power; RJ45 port; BNC sync ports — 1 sync-in, 5 groups of 4 sync-outs (20 in total), TTL high-level triggering; configurable output mode (single pulse / continuous pulses) and output rate (10 Hz / 100 Hz); standard C API output
- Server host
- No lower than: i9 processor, 64 GB RAM, 8 TB HDD plus 2 TB SSD, 4060Ti 16 GB graphics
- Operator display
- 32:9 ultrawide 5K monitor with 1800R curvature; size ≥49″, resolution ≥3840×1080, refresh rate ≥120 Hz
- Display terminal
- All-in-one, rotatable and movable; screen ≥42.51″ / 108 cm, 16:9, resolution 3840×2160, refresh rate ≥60 Hz; inputs VGA ×1, DP1.2 ×2, HDMI ×2; built-in speakers 5 W ×2
Workstation system software
1 set- Overview
- Draws on kinetic and physiological device data with synchronized display and analysis; comprises the information-management, configuration and research-acquisition modules
- Information-management module
- Manages personnel records, with create, edit and delete operations
- Configuration module
- Manages and configures device parameters of every kind; view and manage the status of all devices and make the adjustments needed to keep them running as required
- Research-acquisition module
- Acquires data from kinetic and physiological devices in real time and in sync, with immediate display; supports multiple data formats and communication protocols to keep data accurate and complete, supplying data for research, healthcare and athletic training
Application Scenarios
Application areas listed in the official product material.
- SCENARIO 01
Clinical movement-capacity assessment
LAGRANGEMOTION BIOMECHANICS WORKSTATION - SCENARIO 02
Research analysis
LAGRANGEMOTION BIOMECHANICS WORKSTATION - SCENARIO 03
Training and teaching
LAGRANGEMOTION BIOMECHANICS WORKSTATION
Documentation
Datasheet preview and download; the official technical file governs final mechanical and electrical details.
- Datasheet
