Gait Kinetics at Walking and Running Speed

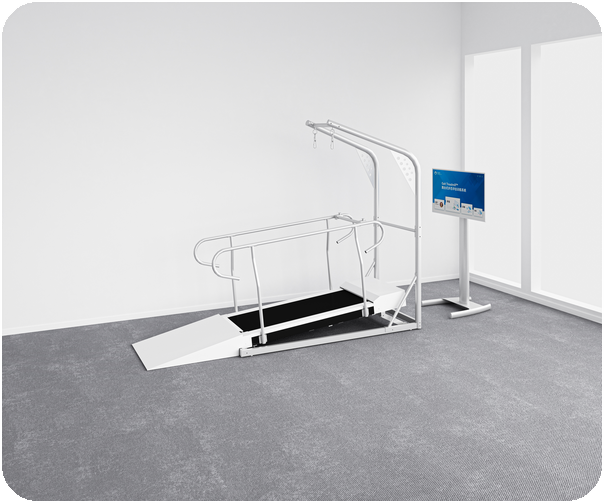

Gait Treadmill™ Treadmill Gait Assessment & Training System
A gait-analysis treadmill that integrates pressure distribution, force plate, treadmill and body-weight support in one — a world first — capturing multi-dimensional kinetics and kinematics during walking or running, with force-feedback speed adaptation. It integrates with motion capture and surface EMG to characterize a subject's gait in full. The effective area is about 1400 × 560 mm, with 0–12° adjustable incline and 0–18 km/h adjustable speed plus force-feedback adaptation; it synchronizes with third-party kinematic, kinetic and physiological systems for research analysis.
- Speed range
- 0–18 km/h (force-feedback adaptive)
- Incline range
- 0–12°
- Effective test area
- 1450 × 560 mm
- Sensor count
- 19,200
Plantar Pressure Distribution
How the pressure array renders the footprint, its peak regions and the centre-of-pressure path.
- Peak pressure
- —
- Contact area
- —
- Left / right
- —
- COP
- —
Report charts
Charts of the kind this product’s reports and analysis screens contain, animated in step with the preview above; their values are illustrative too.
This preview animates software-generated illustrative values so the data the system produces can be understood. No physical device is connected and no reading here is a measurement.
Core Capabilities
The capability points below are taken from the official product material for this product.
Four-in-one
pressure distribution + 6-axis force plate + treadmill + body-weight support
0–18 km/h adjustable speed with force-feedback adaptation
0–12° adjustable incline
Multi-device integration and normalization of kinetics and kinematics during walking or running for complete gait and mechanical analysis
Real-time ground-reaction-force recording delivers 3D mechanical metrics for gait assessment and training
Typical Workflow
A generic research-lab sequence; mounting, synchronization and export details follow the official technical file.
Set up and calibrate
Position the equipment for the protocol and complete zeroing or calibration before the first trial.
Acquire in sync
Record with third-party kinematic, kinetic or physiological systems on one time base where the protocol requires it.
Process and analyze
Review trials in the analysis software and derive the metrics your study defines.
Export and publish
Export raw or processed data for statistics, modelling and publication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Effective test area | 1450 × 560 mm |
| Sensor type | Pressure array + 6-axis force plate |
| Array density | >2 points/cm² |
| Sensor count | 19,200 |
| Incline range | 0–12° |
| Speed range | 0–18 km/h (force-feedback adaptive) |
Application Scenarios
Application areas listed in the official product material.
- SCENARIO 01
Gait assessment
LAGRANGEGAIT ANALYSIS TREADMILLTM-800-G2-F - SCENARIO 02
Six-axis kinetics analysis
LAGRANGEGAIT ANALYSIS TREADMILLTM-800-G2-F - SCENARIO 03
Gait training
LAGRANGEGAIT ANALYSIS TREADMILLTM-800-G2-F
Documentation
Datasheet preview and download; the official technical file governs final mechanical and electrical details.
- Datasheet · TM-800-G2-F
